537nm激光器
LL537-20mw

LD PUMPED ALL-SOLID-STATE GREEN LASER AT 537nm All solid state 537nm green laser is made features of high output power stability, good beam profile, ultra compact, long lifetime, low cost and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, etc.

Part number	MGL-FN-537
Wavelength (nm)	537± 1
Operating mode	CW
Output power (mW)	1-30
Power stability (rms, over 4 hours)	<5%, <3%, <2%
Transverse mode	Near TEM00
M2 factor	< 1.5
Beam diameter at the aperture ( 1/e2, mm)	<2.0
Beam divergence, full angle (mrad)	< 1.5
Polarization Ratio	>50:1, (Horizontal or Vertical Optional)
Warm-up time (minutes)	<5
Pointing stability after warm-up (mrad)	<0.05

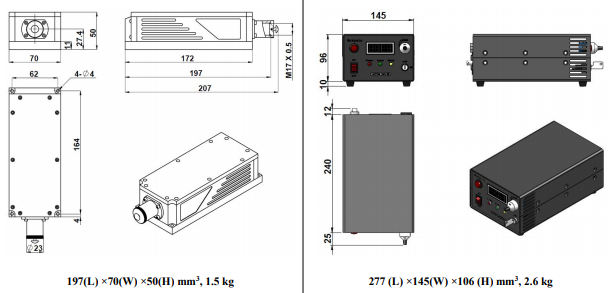

Beam height from base plate (mm)	27.4
Operating Temperature (°C)	10-35
Modulation option	TTL on/off, 1Hz- 1kHz, 1kHz- 10kHz
Power supply (90-264VAC)	PSU-H-LED/
Expected lifetime (hours)	10000
Warranty	1 year
